    Lol. Ball valve works well as a hose bib and a return pump throttle;)

    salt_for_brains, May 21, 2014
    #41
    1. Advertisements

  2. Zissou

    Aquarian

    Joined:
    Jul 3, 2013
    Messages:
    2,828
    Likes Received:
    1,206
    Location:
    Connecticut USA
    It's also very low pressure around 300 +/- gph.

    Aquarian, May 21, 2014
    #42
    1. Advertisements

  3. Zissou

    Tifoez

    Joined:
    Jan 17, 2014
    Messages:
    108
    Likes Received:
    11
    Well there is your answer relying on reef octopus information.. I'm sure the gate valve is more expensive than ball valves through them.. why not make money off people

    Tifoez, May 24, 2014
    #43
  4. Zissou

    bjohanson1234 .........

    Joined:
    Sep 4, 2006
    Messages:
    10,998
    Likes Received:
    1,102
    Location:
    Palos Heights, IL

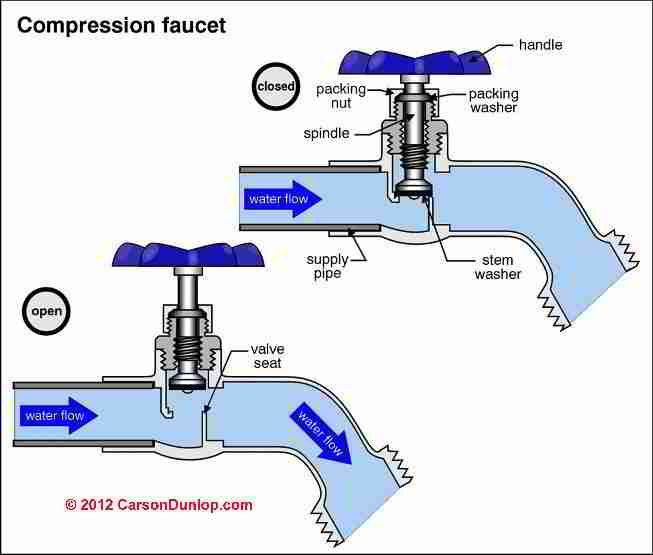

    Last I checked, hose bibbs are not ball valves... Ball valves are usually quarter turn devices. Hose bibbs are generally not and require several turns to open or close them.
    [​IMG]

    bjohanson1234, May 24, 2014
    #44
  5. Zissou

    Aquarian

    Joined:
    Jul 3, 2013
    Messages:
    2,828
    Likes Received:
    1,206
    Location:
    Connecticut USA
    Closer to a gate valve.

    Aquarian, May 24, 2014
    #45
  6. Zissou

    mariobrothersleeve squirrel

    Joined:
    Dec 2, 2012
    Messages:
    2,219
    Likes Received:
    580
    It was a joke. I gave up.

    mariobrothersleeve, May 25, 2014
    #46
  7. Zissou

    bjohanson1234 .........

    Joined:
    Sep 4, 2006
    Messages:
    10,998
    Likes Received:
    1,102
    Location:
    Palos Heights, IL
    Ahhhh ok

    bjohanson1234, May 25, 2014
    #47
  8. Zissou

    ReeferRob

    Joined:
    Feb 13, 2014
    Messages:
    755
    Likes Received:
    386
    You're more than welcome to use what you like for flow control. I have yet to see someone use a gate valve for flow control, open or closed, no in between in an industrial application. I've used ball valves for flow control for as long as I've had aquariums, dad's a master plumber by trade and that's what I was told to use.

    ReeferRob, May 26, 2014
    #48
    emmett0122 likes this.
  9. Zissou

    mariobrothersleeve squirrel

    Joined:
    Dec 2, 2012
    Messages:
    2,219
    Likes Received:
    580
    We use gate valves in steam lines. The reason is they open slower. Ball valves are on and off and cold pipes getting 300 plus degree steam tend to pop.
    You can not regulate a ball valve, there is not percentage open, pure an simple fact. Gate valves in industrial apps, are great for slow open and close, obviously not to set to regulate but FINE tuning is 10 X's better than a ball valve. We are not subjecting these valves to harsh temps or even dirty water, it's to adjust a FINE tune on multiple outlets. Try running ball valves to 3 different places off of 1 pump and try to regulate it, then tell me how great they are. If you are using them to silence an over flow, not that big of a deal, I have never heard of ball valves are just as good to regulate flow. I guess most just have a simple overflow under their tank and that's it.
    Any folks here with a sump, frag, and dt along 1 system here use ball valves to regulate flow from their basement? I really want to hear more complex setups than plumbing 3ft.

    mariobrothersleeve, May 26, 2014
    #49
  10. Zissou

    emmett0122

    Joined:
    Aug 27, 2012
    Messages:
    1,118
    Likes Received:
    353
    Location:
    Liverpool, PA
    i ran one pump on my 55 with 2 ball valves one to control the DT and the to control the skimmer had no problems controlling either one

    emmett0122, May 26, 2014
    #50
  11. Zissou

    Craig Anderson

    Joined:
    Nov 5, 2014
    Messages:
    15
    Likes Received:
    7
    I believe the opposite is true. Ball valves are very hard to adjust, as almost any movement is quite a large change in flow. Gate valves are the best for flow control and adjustment as you have a lot more ability to adjust them and control flow precisely.

    Craig Anderson, Feb 24, 2015
    #51
    mariobrothersleeve likes this.
  12. Zissou

    Craig Anderson

    Joined:
    Nov 5, 2014
    Messages:
    15
    Likes Received:
    7
    Plumbing Valve Types


    There are a number of different plumbing valves used to control the flow of water in a building. The pros and cons of each type are identified below.

    Ball Valve
    Ball valves are made with a rotating sphere that has a hole in it. In the open position, the hole in the sphere is in line with the pipe. When closed, the hole in the sphere is perpendicular to the pipe. The lever handle operates the valve, but also serves as an indicator for whether the valve is open or closed. When the lever is parallel to the pipe, the valve is open.

    Ball valves do not allow for precise flow control because they usually have positive stops (0, 45, 90 degrees), but they do provide a very good seal in the closed position.

    [​IMG]

    Gate Valve
    Gate valves control water flow by raising or lowering the gate, which is generally a piece of metal. There is a wheel or knob at the top of a gate valve that controls the height of the gate - this, in turn, affects the flow of water. Unfortunately, the wheel doesn't provide any indication of whether the valve is open or closed, or to what extent.

    Gate valves provide a reasonable seal, but they should not be used to adjust flow - they should be open or closed. Gate valves may not be very durable and are susceptible to corrosion, which will cause the valve to get stuck in the open or closed position.

    [​IMG]

    Craig Anderson, Feb 24, 2015
    #52
  13. Zissou

    Craig Anderson

    Joined:
    Nov 5, 2014
    Messages:
    15
    Likes Received:
    7
    The corrosion issue on the gate valves does not really apply to PVC gate valves with aquarium type water flow and the flow control is superb.

    Craig Anderson, Feb 24, 2015
    #53
    mariobrothersleeve likes this.
  14. Zissou

    mariobrothersleeve squirrel

    Joined:
    Dec 2, 2012
    Messages:
    2,219
    Likes Received:
    580
    mariobrothersleeve, Feb 24, 2015
    #54
  15. Zissou

    mariobrothersleeve squirrel

    Joined:
    Dec 2, 2012
    Messages:
    2,219
    Likes Received:
    580
    I've had my gate valves in for a year now. They work flawlessly. I have 2 ball valves to isolate the return pump and they have frozen up. I am afraid of turning harder on them because they may break.

    Once again, the control on the gate valve is outstanding in comparing it to the ball valve in our application.

    mariobrothersleeve, Feb 24, 2015
