    Mega Powerful Nitrate and Phosphate Remover - DIY!

    Part 1 of 3


    Are you tired of green on your rocks? Do you have to clean your glass more than once a week? Well then I'm sure you've been told (or you've figured out) that your Nitrate and/or Phosphate are too high. Sure enough, if these are too high, the green starts growing. Phosphate is the important one: If you can detect any phosphate at all with a hobby test kit (like Salifert), then it's high enough to cause algae to grow. So, what can you do?

    Build an algae scrubber! An algae scrubber, also known as a turf algae filter, a turf scrubber, or an algae filter, basically filters your water clean of nitrate and phosphate so that the green on your rocks and glass goes away. It does this by "moving" the growth of the algae from the tank to a "screen" outside of the tank. The idea is that you create a better growing environment on the screen than occurs in the tank, so that the algae grows on the screen instead. It works great! Here is my display, December 2008:

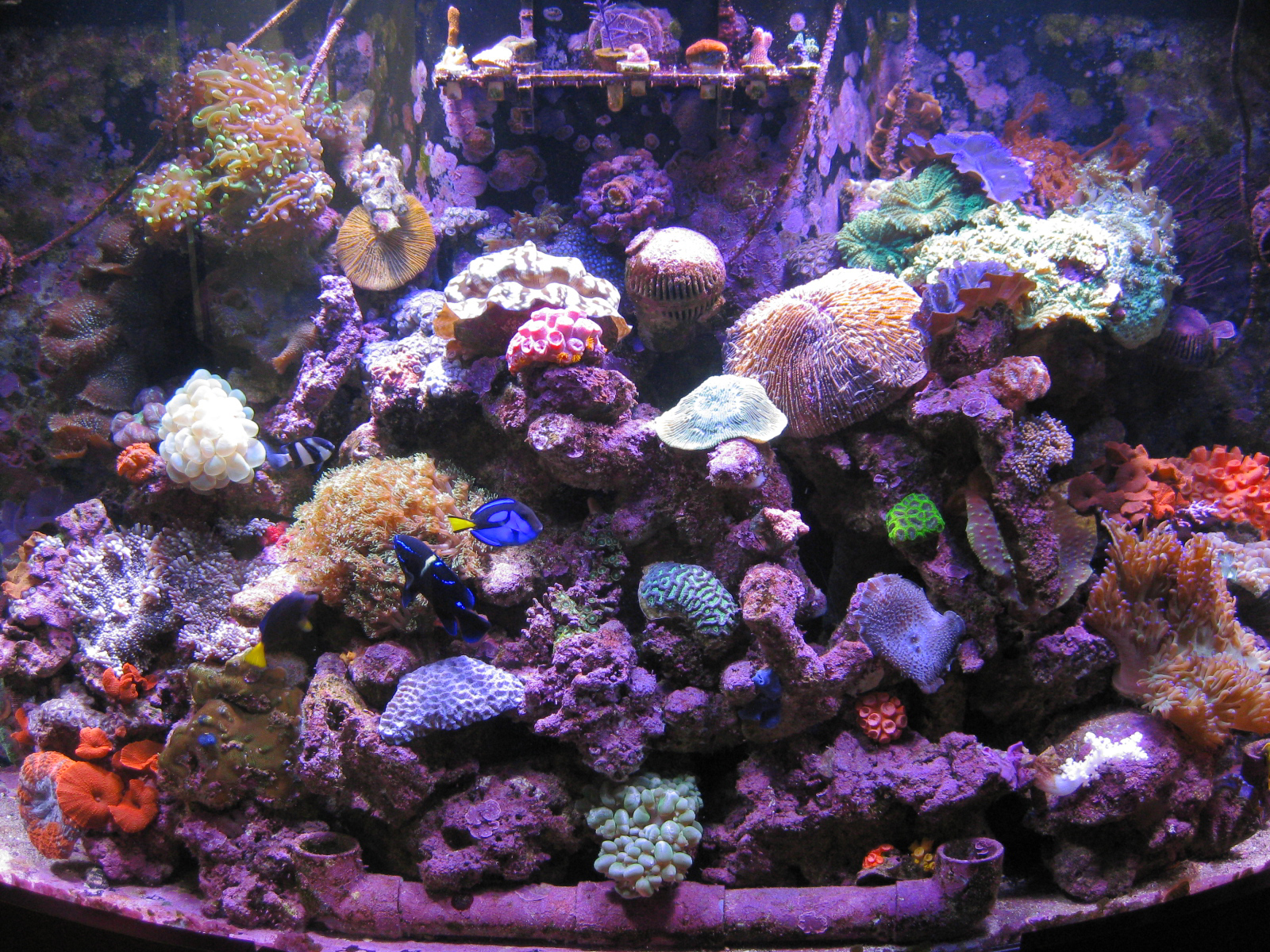

    [​IMG]
    Hi-Res: http://www.radio-media.com/fish/WholeTank-12-29-2008.jpg
    Details: http://www.radio-media.com/fish/Tank.htm

    Here's what you can expect: If you build your algae scrubber properly, your nitrate and phosphate will be incredibly low, sometimes unmeasureable by hobby test kits, within eight weeks. I use Salifert test kits, and the readings I get are "clear" (zero) for both the Nitrate and the Phosphate tests. This is what you want. If you have been trying to get this yourself, then an algae scrubber is for you.

    Here is the original DIY Algae Scrubber in a 5-gallon bucket that I started off with; it was the only filter I had (other than the live rock) on my 100 gallon reef:

    [​IMG]




    Here is the filter in operation with the lights on:

    [​IMG]

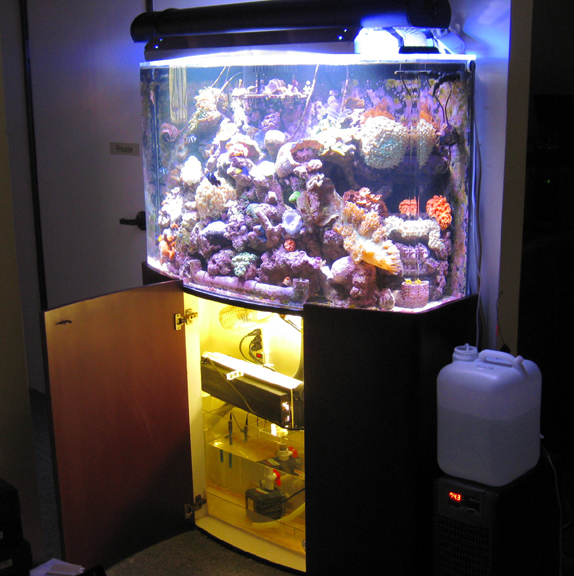

    I have since had an acrylic version made, using T5HO bulbs; it is the long black box setting here on the sump:

    [​IMG]




    Here are the only things you need to build a bucket version of this filter:

    [​IMG]




    My nitrate and phosphate are zero (clear, on Salifert test kits), and the only thing in my sump is water and the scrubber pump. I removed the skimmer, carbon, phosban, polyfilter(s), and filtersock; I don't use ozone, vodka, zeo, or anything else. I'm feeding massive amounts too; enough that if I had my previous filtering setup, I'd have to clean the glass twice a day, and everything in the tank would be covered in green or brown algae. Amazing. And it's not just my tank; over the last six months, hundreds of people have built their own versions of an algae scrubber. Every one has gotten reduced nitrate and phosphate readings, and many of them have completely wiped out all nuisance algae, right down to the bare rock, sand and glass.

    The only thing you need to decide on is how big your scrubber screen needs to be, and if you want it to be in your tank's hood, or in a bucket, or in your sump. The basic rule is one square inch of screen for each gallon of tank water (if the screen it lit on both sides); the screen size should be twice this if the screen is lit up on just one side. A 12 X 12 inch screen, lit on both sides, = 144 square inches = 144 gal tank; a 7 X 7 inch screen lit both sides = 49 gal tank; a 6 X 6 lit both sides = 36 gal tank. Algae scrubbers get really small as you can see. A 12 gal nano tank needs just 3 X 4 inches! This small thing can replace the skimmer, refugium, phosphate removers, nitrate removers, carbon, filtersocks, and waterchanges, IF THE PURPOSE of these devices is to reduce nitrate, phosphate and nuisance algae. If these devices have any other purpose, then they can't be replaced. If your tank is bigger than a 75, then just start with a 5 gallon bucket size and see how it goes. You can always add a second one, or build a bigger one later.

    My example bucket version takes about 4 hours to build. Water goes in the pvc pipe at the top, flows down over the screen, then drains out the bottom. That's it! Oh, and it has clip-on lights. I can feed the tank a lot of food, and anything not eaten by the corals or fish eventually ends up as algae on the screen (instead of algae on your glass or rocks.)

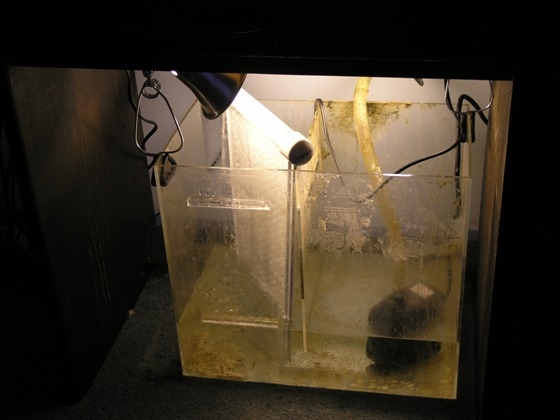

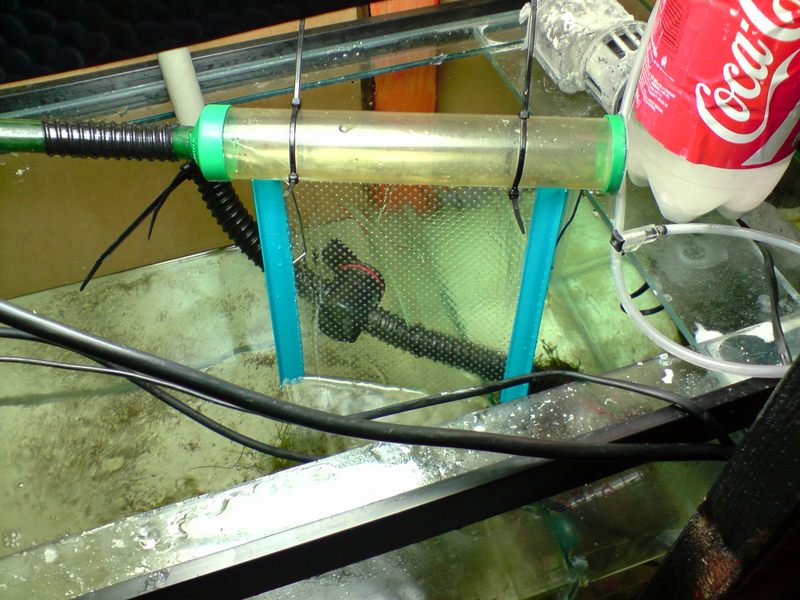

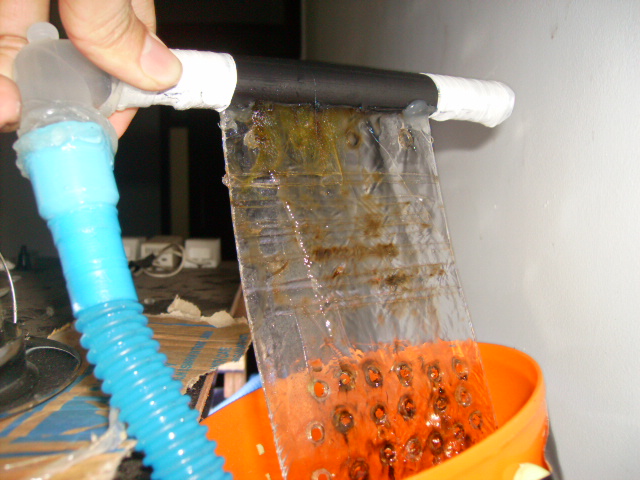

    Here are some examples of DIY algae filter screens already built, from a simple nano one:

    [​IMG]

    [​IMG]

    [​IMG]

    SantaMonica, Jan 8, 2009
    #1
    PringlesLFE likes this.
    1. Advertisements

  2. SantaMonica

    sen5241b

    Joined:
    Feb 14, 2008
    Messages:
    5,021
    Likes Received:
    385
    Location:
    Arlington VA
    I've read about these before but I don't think I could fit on in my BC29's stand. My tank is in my living room so an external one wouldn't look right. I wonder if a horizontal one would work --assume you keep good water flow on it.

    sen5241b, Jan 8, 2009
    #2
    1. Advertisements

  3. SantaMonica

    yote Ceritfied Mantis Hunter Moderator

    Joined:
    Oct 23, 2006
    Messages:
    26,996
    Likes Received:
    3,868
    Location:
    Ringgold,Ga
    I've seen those.

    yote, Jan 8, 2009
    #3
  4. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Horizontal works too; is just a matter of building/enclosing it.

    SantaMonica, Jan 8, 2009
    #4
  5. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Part 2 of 3

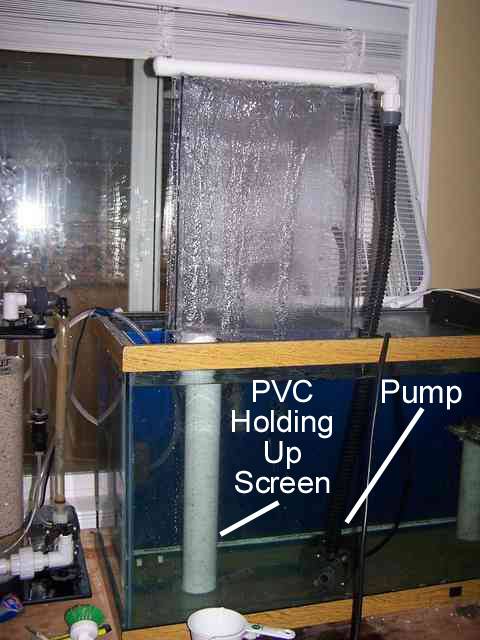

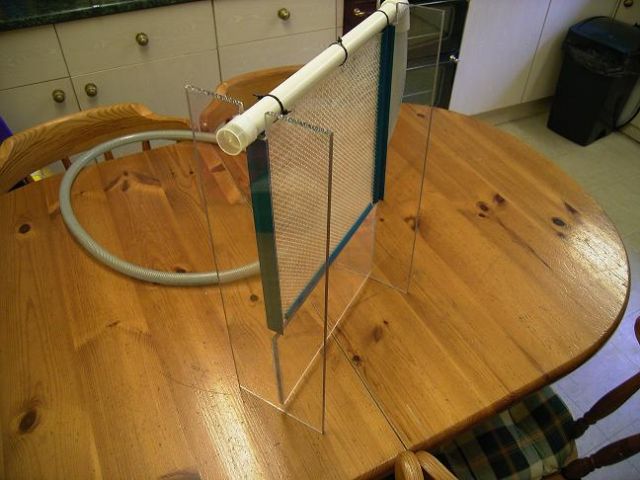

    to larger ones:


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]




    Here are some advantages of an algae scrubber:


    o Allows you to feed very high amounts without causing nuisance algae growth in the tank.

    o Can replace waterchanges, IF THE PURPOSE of the waterchange is to reduce nitrate or
    phosphate or nuisance algae. Otherwise, it does NOT replace the water change.

    o Grows swarms of copepods.

    o Increases pH.

    o Increases oxygen.

    o Will NOT spread algae into the tank. It removes algae FROM the tank.

    o There is no odor from the algae (only a slight ocean smell when cleaning it).

    o Is very quiet when flowing, similar to a tabletop decorative waterfall. Your pumps are louder.

    o Introduces no microbubbles when built properly.

    o Removes ammonia too.

    o Works in saltwater, freshwater, and ponds too.



    How to build it:

    First, get your screen. Any stiff material that has holes in it, like knitting backing, plastic canvas, rug canvas, gutter guard, or tank-divider will do. Try going to hardware stores, craft stores, garden stores, sewing stores, or just get one of these online (in order of preference):

    http://www.craftsetc.com/store/item.aspx?ItemId=43844
    http://www.aquaticeco.com/subcategories/2/Tank-Dividers/tank divider/0

    Don't use window screen though. The main problem with this kind of "soft" screen will be getting it to hold its shape; it will bend and fold too much. Stiff screen is easier to make stay put, and easier to clean.

    If you have a nano with a filter hatch on TOP of the hood, then it's super easy: Just cut a piece of screen to replace the sponge filter, and put it where the sponge filter went. Leave the hatch open, and set a strong light on it, facing down directly on the screen. This is a good bulb to get; it will be bright enough to power the screen, and to light up your nano too:

    http://www.buylighting.com/23-Watt-R40-Compact-Fluorescent-Flood-5100K-p/tcp1r4023-51k.htm

    If your nano does not have a filter hatch on top of the hood, or if you have a regular tank, then here are the options for larger versions:

    [​IMG]

    [​IMG]

    [​IMG]


    The first and main thing to consider is the flow to the screen. You need about 35 gph (gallons per hour) for every inch of width of the screen. Thus, a 2" wide screen would need 70 gph, and so on. Here is a chart:

    Screen Width-----Gallons Per Hour (GPH)

    1" 35
    2" 70
    3" 105
    4" 140
    5" 175
    6" 210
    7" 245
    8" 280
    9" 315
    10" 350
    11" 385
    12" 420
    13" 455
    14" 490
    15" 525
    16" 560
    17" 595
    18" 630
    19" 665
    20" 700


    Note that for flow, it does not matter how tall your screen is, just how wide it is. Let's start with an overflow feed: In this case the amount of flow is pre-determined by how much is already overflowing; the maximum flow you'll get to the screen will be what's going through your overflow now. This is easy to figure out by counting how many seconds it takes your overflow to fill a one-gallon jug:

    60 seconds = 60 gph
    30 seconds = 120 gph
    15 seconds = 240 gph
    10 seconds = 360 gph
    8 seconds = 450 gph
    5 seconds = 720 gph


    Take this gph number that you end up with, and divide by 35, to get the number of inches wide the screen should be. For example, if your overflow was 240 gph, then divide this by 35 to get 6.8 (or just say 7) inches. So your screen should be 7 inches wide. How tall should it be? Tall enough for it to stick into the water below (this will keep it quiet). But for flow, how tall it is not as important as how wide it is.

    SantaMonica, Jan 8, 2009
    #5
    jen_1122 likes this.
  6. SantaMonica

    ccCapt Reef Hacker Moderator

    Joined:
    Dec 23, 2007
    Messages:
    3,302
    Likes Received:
    815
    Location:
    Northeast PA
    Gheez, what took you so long to get here? Your project and all the 6,000 or so pics are posted on every other marine forum on the internet. ;)

    ccCapt, Jan 8, 2009
    #6
  7. SantaMonica

    yote Ceritfied Mantis Hunter Moderator

    Joined:
    Oct 23, 2006
    Messages:
    26,996
    Likes Received:
    3,868
    Location:
    Ringgold,Ga
    I've actually been thinking of setting up one of those outfits.And probably will when I get time.
    Its just a homemade algae scrubber that would benefit a lot of tanks,especially SPS systems.

    yote, Jan 8, 2009
    #7
  8. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Saving the best for last :)

    SantaMonica, Jan 8, 2009
    #8
  9. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Part 2 of 3


    to larger ones:


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]




    Here are some advantages of an algae scrubber:


    o Allows you to feed very high amounts without causing nuisance algae growth in the tank.

    o Can replace waterchanges, IF THE PURPOSE of the waterchange is to reduce nitrate or
    phosphate or nuisance algae. Otherwise, it does NOT replace the water change.

    o Grows swarms of copepods.

    o Increases pH.

    o Increases oxygen.

    o Will NOT spread algae into the tank. It removes algae FROM the tank.

    o There is no odor from the algae (only a slight ocean smell when cleaning it).

    o Is very quiet when flowing, similar to a tabletop decorative waterfall. Your pumps are louder.

    o Introduces no microbubbles when built properly.

    o Removes ammonia too.

    o Works in saltwater, freshwater, and ponds too.



    How to build it:

    First, get your screen. Any stiff material that has holes in it, like knitting backing, plastic canvas, rug canvas, gutter guard, or tank-divider will do. Try going to hardware stores, craft stores, garden stores, sewing stores, or just get one of these online (in order of preference):

    http://www.craftsetc.com/store/item.aspx?ItemId=43844
    http://www.aquaticeco.com/subcategories/2/Tank-Dividers/tank divider/0

    Don't use window screen though. The main problem with this kind of "soft" screen will be getting it to hold its shape; it will bend and fold too much. Stiff screen is easier to make stay put, and easier to clean.

    If you have a nano with a filter hatch on TOP of the hood, then it's super easy: Just cut a piece of screen to replace the sponge filter, and put it where the sponge filter went. Leave the hatch open, and set a strong light on it, facing down directly on the screen. This is a good bulb to get; it will be bright enough to power the screen, and to light up your nano too:

    http://www.buylighting.com/23-Watt-R40-Compact-Fluorescent-Flood-5100K-p/tcp1r4023-51k.htm

    If your nano does not have a filter hatch on top of the hood, or if you have a regular tank, then here are the options for larger versions:

    [​IMG]

    [​IMG]

    [​IMG]


    The first and main thing to consider is the flow to the screen. You need about 35 gph (gallons per hour) for every inch of width of the screen. Thus, a 2" wide screen would need 70 gph, and so on. Here is a chart:

    Screen Width-----Gallons Per Hour (GPH)

    1" 35
    2" 70
    3" 105
    4" 140
    5" 175
    6" 210
    7" 245
    8" 280
    9" 315
    10" 350
    11" 385
    12" 420
    13" 455
    14" 490
    15" 525
    16" 560
    17" 595
    18" 630
    19" 665
    20" 700


    Note that for flow, it does not matter how tall your screen is, just how wide it is. Let's start with an overflow feed: In this case the amount of flow is pre-determined by how much is already overflowing; the maximum flow you'll get to the screen will be what's going through your overflow now. This is easy to figure out by counting how many seconds it takes your overflow to fill a one-gallon jug:

    60 seconds = 60 gph
    30 seconds = 120 gph
    15 seconds = 240 gph
    10 seconds = 360 gph
    8 seconds = 450 gph
    5 seconds = 720 gph


    Take this gph number that you end up with, and divide by 35, to get the number of inches wide the screen should be. For example, if your overflow was 240 gph, then divide this by 35 to get 6.8 (or just say 7) inches. So your screen should be 7 inches wide. How tall should it be? Tall enough for it to stick into the water below (this will keep it quiet). But for flow, how tall it is not as important as how wide it is.

    SantaMonica, Jan 8, 2009
    #9
  10. SantaMonica

    dustin_P74

    Joined:
    Feb 25, 2008
    Messages:
    9,262
    Likes Received:
    657
    Location:
    Marietta, GA USA
    nice save

    dustin_P74, Jan 8, 2009
    #10
  11. SantaMonica

    RyanG ^*Eternal Dumbass*^

    Joined:
    Jan 25, 2008
    Messages:
    8,189
    Likes Received:
    569
    Location:
    Cuba, New York
    Dont people have a lot problems with the tank water yellowing from small algae particles being suspended in the water column.

    RyanG, Jan 8, 2009
    #11
  12. SantaMonica

    RyanG ^*Eternal Dumbass*^

    Joined:
    Jan 25, 2008
    Messages:
    8,189
    Likes Received:
    569
    Location:
    Cuba, New York
    Thank you for becoming a supporter by the way!

    RyanG, Jan 8, 2009
    #12
  13. SantaMonica

    dustin_P74

    Joined:
    Feb 25, 2008
    Messages:
    9,262
    Likes Received:
    657
    Location:
    Marietta, GA USA
    carbon takes care of that, or would running carbon negate the fact that your running this

    dustin_P74, Jan 9, 2009
    #13
  14. SantaMonica

    yote Ceritfied Mantis Hunter Moderator

    Joined:
    Oct 23, 2006
    Messages:
    26,996
    Likes Received:
    3,868
    Location:
    Ringgold,Ga
    Carbon will pull the yellow out of the water.But carbon can also leech phosphates right back into it also.

    yote, Jan 9, 2009
    #14
  15. SantaMonica

    RyanG ^*Eternal Dumbass*^

    Joined:
    Jan 25, 2008
    Messages:
    8,189
    Likes Received:
    569
    Location:
    Cuba, New York
    Ill stick with my big skimmer and frequent large water changes. That would work nice in a remote sump set-up but I dont have nor would I dedicate the space to it. The waterfall noise would drive me nuts too I think.

    RyanG, Jan 9, 2009
    #15
  16. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Never. (1) Algae particles don't get into the water, because they grow tightly to the screen. (2) To prevent algae from getting into the water during the weekly cleaning, the screen must be taken to the sink and cleaned in FW. In previous years, it was not known that you had to remove the screens, and so when they were cleaned "in-system", their water yellowed. This even happened at public aquariums. It was not discovered until six months ago, the proper way to do it.

    No prob... tryin to help out.

    Well fortunately as stated, yellowing does not occur. But if you were running carbon for anything else, it has never shown to affect scrubber operation.

    SantaMonica, Jan 9, 2009
    #16
  17. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Part 3 of 3

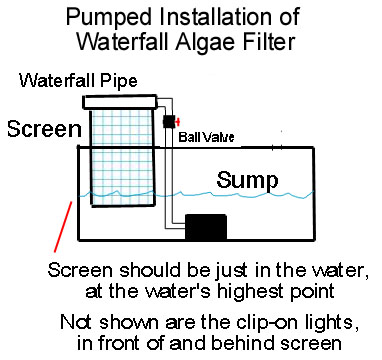

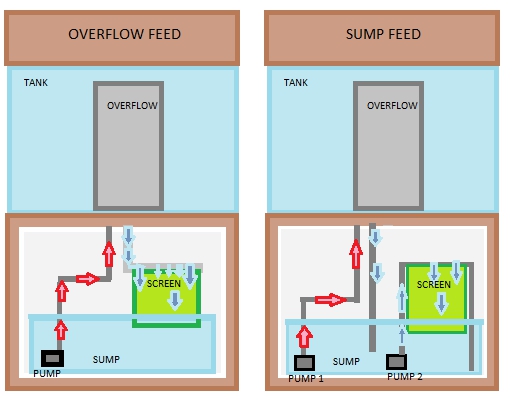

    Pump feeds: Since with a pump you have control over the flow, start with the size screen you can fit into your space. If the screen will go into your sump, then measure how wide that screen will be. If the screen will go into a bucket, then measure how wide that screen will be. Take the width you get, and multiply by 35 to get the gph you need. For example if you can fit a 10 inch wide screen into your sump or bucket, then multiply 10 by 35 to get 350 gph. Thus your pump needs to deliver 350 gph to the screen.

    You can construct your setup using any method you like. The only difficult part is the "waterfall pipe", which must have a slot cut lengthwise into it where the screen goes into it. Don't cut the slot too wide; just start with 1/8" (3mm), and you can increase it later if you need to, based on the flow you get. I used a Dremel moto-tool with a "cut off wheel":

    [​IMG]


    Now install the pipe onto the screen/bucket by tilting the pipe and starting at one side, then lowering the pipe over the rest. You may have to wiggle the screen in some places to get it to fit in:

    [​IMG]


    Lighting: This is the most important aspect of the whole thing. You must, must, have strong lighting. I'll list again the bulb I listed above:

    http://www.buylighting.com/23-Watt-R40-Compact-Fluorescent-Flood-5100K-p/tcp1r4023-51k.htm

    ... This the MINIMUM wattage you should have on BOTH sides of your screen. You can get even higher power CFL bulbs, or use multiple bulbs per side, for screens larger than 12 X 12 inches, or for tanks with higher waste loads. The higher the power of the lighting on the screen, the more nitrate and phosphate will be pulled out of the tank, and the faster it will happen. You cannot have too much light. When some folks report back that their algae scrubber is not growing algae or working well, the problem is ALWAYS that they used weak lights, or the lights were more than 4" away. Every single time.


    Operation:

    Regardless of which version you build, the startup process is the same. First, clean the screen with running tap water (no soap) while scrubbing it with something abrasive. Then dry it off and sand it with sandpaper on both sides. Then get some algae (any type) from your system and rub it HARD into the screen on both sides, as deep and as hard as you can. Then run tap water over the screen to remove the loose algae pieces; you won't see the remaining spores that stick to the screen... they are too small, but they are there.

    Put a timer on the light, for 18 hours ON, and 6 hours OFF. You will see absolutely nothing grow on the screen for the first two days. But on day 3 you'll start seeing some light brown growth, and by day 5 most of the screen should have a light brown coating. If this level of growth does not happen on your screen, your lighting is not strong enough (you used a weaker bulb), or it's not close enough to the screen (needs to be no more than 4" from the middle of the screen). Increase the bulb power, or move it closer.

    When the screen looks something like this:

    [​IMG]


    ...then you want to give it it's first cleaning, on ONE SIDE only. Take the screen to the sink, run tap water on it, and just push the algae off with your fingers (not fingernails):

    [​IMG]

    Wait a week, and clean the other side, gently. Wait another week and clean the first side again, etc. After a while you'll have to press harder to get the tougher algae off, and after a few months you'll probably need to scrape it with something, and it may eventually get so strong that you'll need a razor blade to scrape it off. But for now, be gentle; you always want some algae to remain on the screen when you are done. NEVER clean it off completely. Algae has to remain on the screen to do the filtering.

    Don't forget to test your Nitrate and Phosphate before you start your filter, and each day after. I use Salifert:

    http://www.marinedepot.com/ps_AquariumPage~PageAlias~test_kits_salifert.html

    Post your pics of how you build it, the growth day by day, and your nitrate and phosphate readings, so we can all see how you are doing! There is a lot of info that I did not include here (in order to keep this short), and I've been asked every possible question there is. So if you have an unusual situation, or you think you have thought of something "new", then post it :)

    SantaMonica, Jan 9, 2009
    #17
  18. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Update Of The Day:

    Waste is Food: Reef tank owners sometime get into the frame of mind of "food is food, and waste is waste". Thus they put food into the tank, and they remove waste from the tank (skimming, siphoning, waterchanges.) But actually, both food and waste are Organic, and thus are both "food" (food for something, somewhere). Corals and inverts may not directly eat the big krill that you feed your fish, but they do eat the waste from those fish. Further info:
    http://www.reefkeeping.com/issues/2002-07/eb/index.php

    SantaMonica, Jan 10, 2009
    #18
  19. SantaMonica

    Keaton

    Joined:
    Mar 4, 2008
    Messages:
    476
    Likes Received:
    50
    Location:
    Rock Hill, SC
    Impressive. I think I'll try it if I can sqweeze the time out of my work schedule. :)

    Keaton, Jan 10, 2009
    #19
  20. SantaMonica

    SantaMonica

    Joined:
    Jan 3, 2009
    Messages:
    590
    Likes Received:
    99
    Location:
    Santa Monica, CA, USA
    Ok we'll want pics :)

    SantaMonica, Jan 10, 2009
    #20
